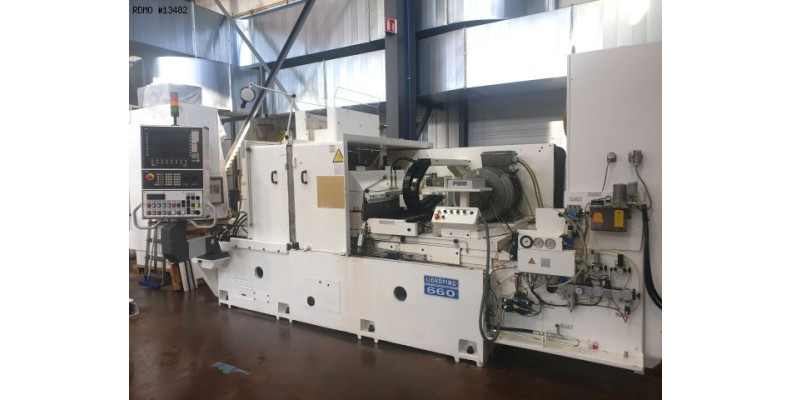

Brand: Lidkoping
Model: CL660
Year:
Serial: 524782
Brand: Lidkoping
Model: CL660
Year:
Serial: 524782

Caracteristics & Equipment

Caracteristics

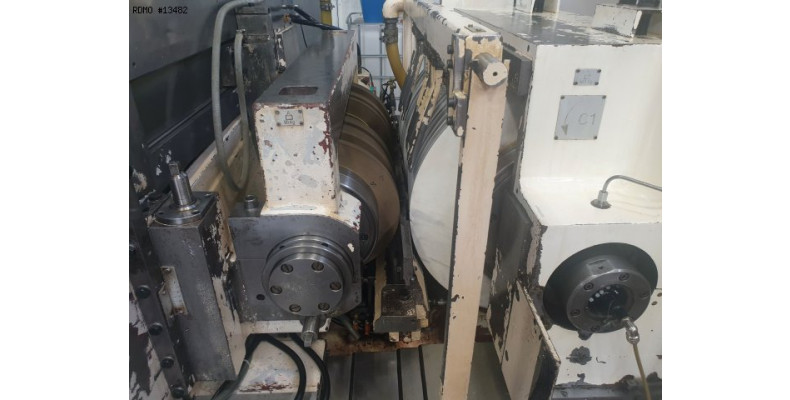

Retrofit of the machine in 2006 - diameter of parts : 5 - 175 [mm] - max. length of part in plunge with standard wheel : 605 [mm] - max. length of part in plunge with recessing wheel : 695 [mm] WORKING GRINDING WHEEL - max. external diameter : 630 [mm] - width standard / max. : 610 / 700 [mm] - bore : 304,8 [mm] - peripheral speed : 63 [m/sec] - motor power : 37 / 100 [kW] REGULATING WHEEL - external diameter standard/max. : 330 / 380 [mm] - width standard/max. : 610 / 660 [mm] - bore : 203 [mm] - speeds : 10 - 750 [rpm] - max. swiveling : 5 [°] SUPPLY - supply : 400V, 50 [Hz] DIMENSIONS - floor surface : 6.000 x 2.800 [mm] - center's height from floor : 1.060 [mm] - weight : 13.500 [kg]
Equipment

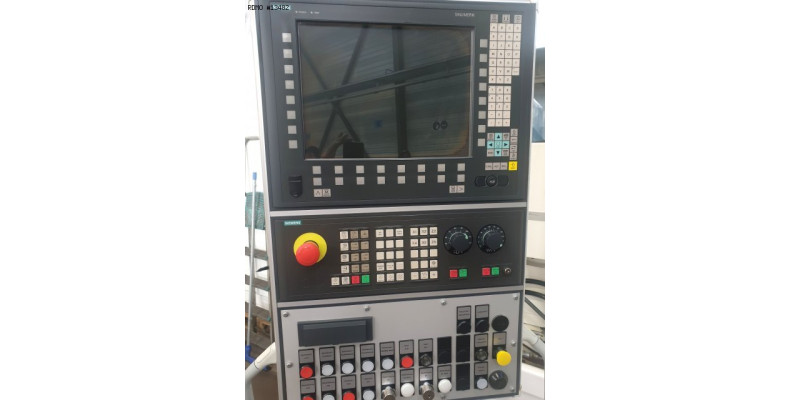

- CNC SIEMENS 840D - 3 colors status lamp
