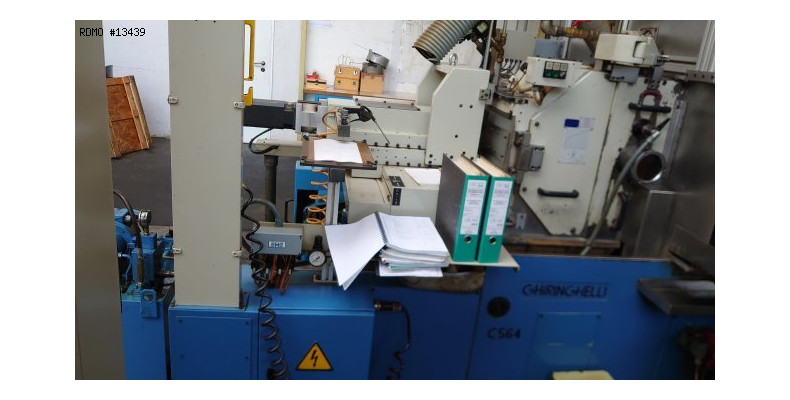

GHIRINGHELLI M250 SP610 4 axis

Grinding / sharpening / lapping / deburring / polishing Centerless grinder cnc

13439

PDF datasheet to download:

Brand: GHIRINGHELLI

Model: M250 SP610

Year: 1999

Serial: C564.00

13439

GHIRINGHELLI M250 SP610 4 axis

Grinding / sharpening / lapping / deburring / polishing Centerless grinder cnc

PDF datasheet to download:

Brand: GHIRINGHELLI

Model: M250 SP610

Year: 1999

Serial: C564.00

Ask Price

Caracteristics

- Workpiece diameter : 2 - 175 [mm]
- Max. plunge grinding length : 240 [mm]
WORKING GRINDING WHEEL
- Grinding wheel diameter : 610 [mm]
- Grinding wheel width : 250 [mm]
- Peripheral speed : 50 [m/s]
- Grinding wheel speed : 1873 [rpm]
REGULATING WHEEL
- Grinding wheel width : 250 [mm]
- Grinding wheel tilt : +/- 7 [°]
SUPPLY
- Installed power : 30 [kW]
- Supply : 400V, 50 [Hz]
DIMENSIONS
- Floor dimensions : 3600 x 4700 [mm]
- Machine height : 2400 [mm]
- Machine weight : 7700 [kg]

Equipment

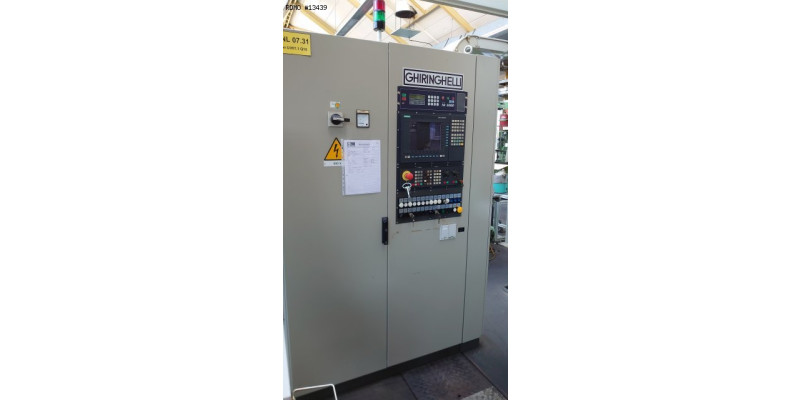

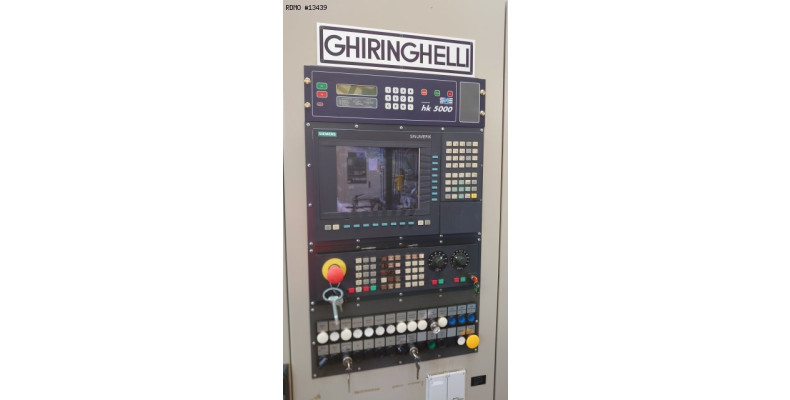

- CNC : SIEMENS SINUMERIK 840 D
- Hydraulic balancing device SHS
- Feeding device GFA
- Suction device
