Charmilles Roboform 35P

Edm machines Spark erosion cnc
11914
PDF datasheet to download:
Brand: Charmilles
Model: Roboform 35P
Year: 2003
Serial: 3.5059/641460
11914

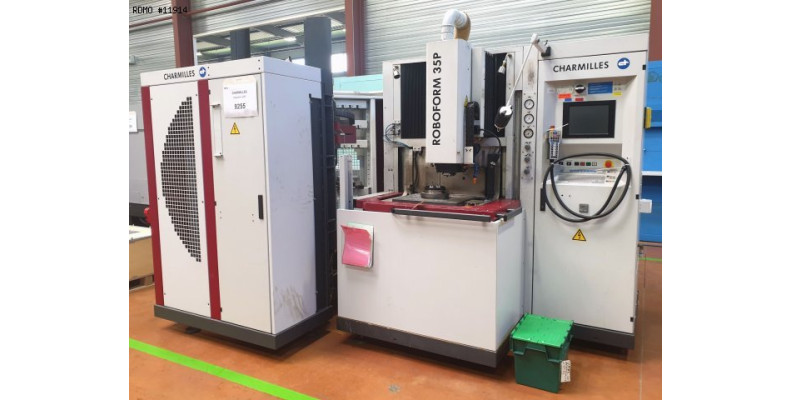

Charmilles Roboform 35P
PDF datasheet to download:
Brand: Charmilles
Model: Roboform 35P
Year: 2003
Serial: 3.5059/641460
Ask Price

Caracteristics & Equipment

Caracteristics

- Strokes X x Y x Z : 350 x 250 x 300 [mm]
- Tank dimensions : 800 x 550 x 370 [mm]
- Tank type : retractable
- Table dimensions : 500 x 400 [mm]
- Max part weight : 500 [kg]
- Max part dimensions : 720 x 400 x 300 [mm]
- Distance between chuck and table min/max : 150/450 [mm]

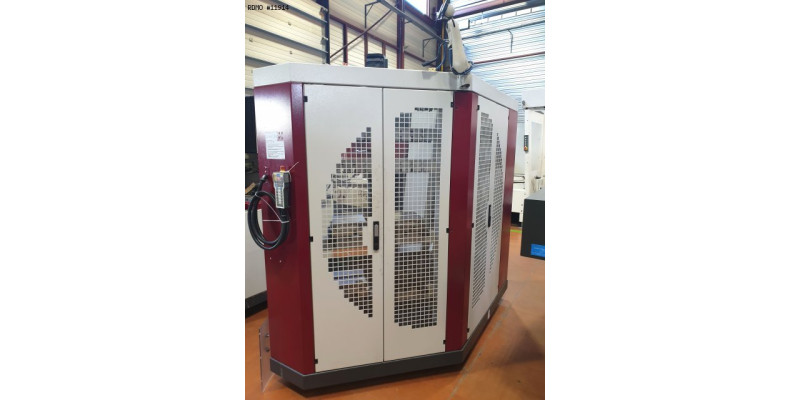

- Generator : ISOPULSE
- Max intensity : 64 [A]
- Machine dimensions (L x D x H) : 3300 x 2390 x 2480 [mm]
- Weight : 3700 [kg]
- Hours under power : 33.205 [h]
Equipment

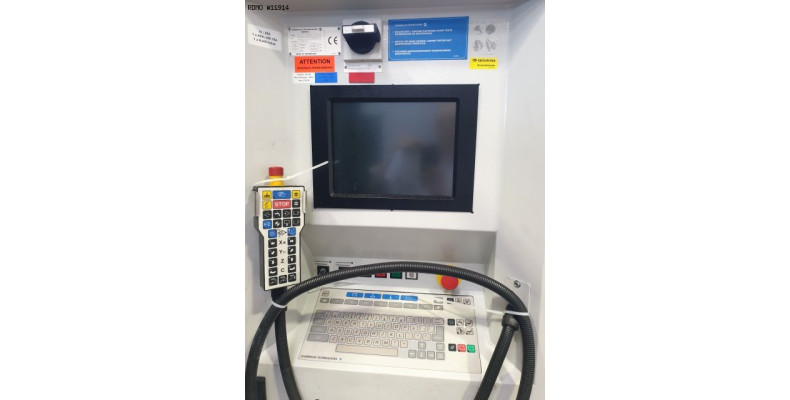

- CNC CHARMILLES
- Electronic deported crank handle
- Axis C

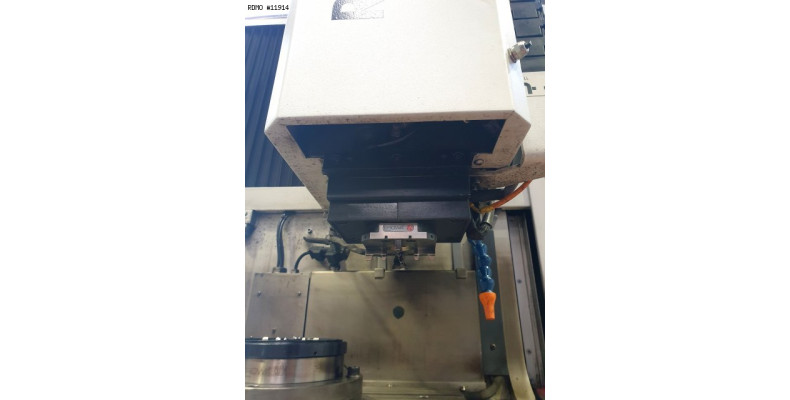

- Spindle nose : EROWA
- Dielectric tank : 450 [l]
- Cartridges filtration : 4
- Magazine QCRI capacity 8 pallets and 54 tools

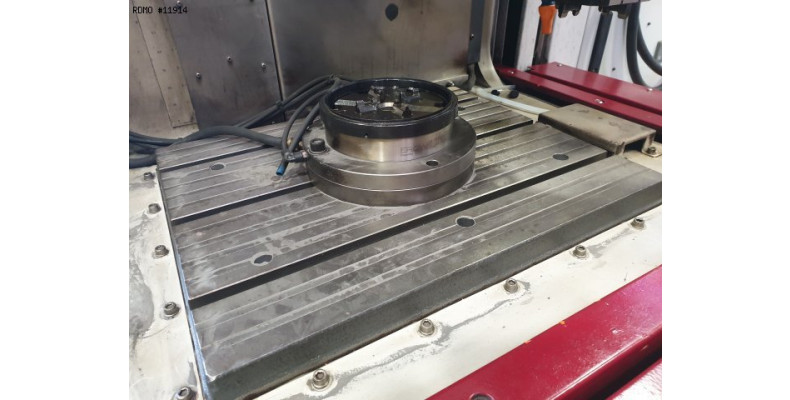

- Pneumatic table chuck : EROWA
- Anti-fire system : PRIMUS UE-02
NB : without working warranty. To be controlled by a qualified organization chosen by the buyer.
- 12 round pallets EROWA
- 7 square pallets EROWA
