AGIE CHARMILLES FORM 2000 VHP 4 axis

Edm machines Spark erosion cnc
15515
PDF datasheet to download:
Brand: AGIE CHARMILLES
Model: FORM 2000 VHP
Year: 2015
Serial: 592.032.054.0414
15515

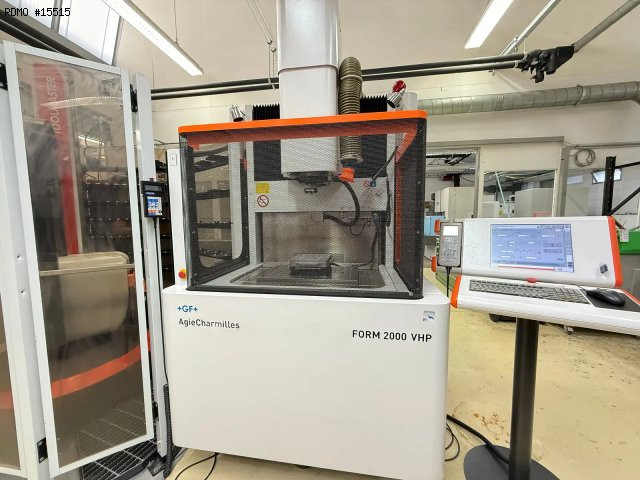

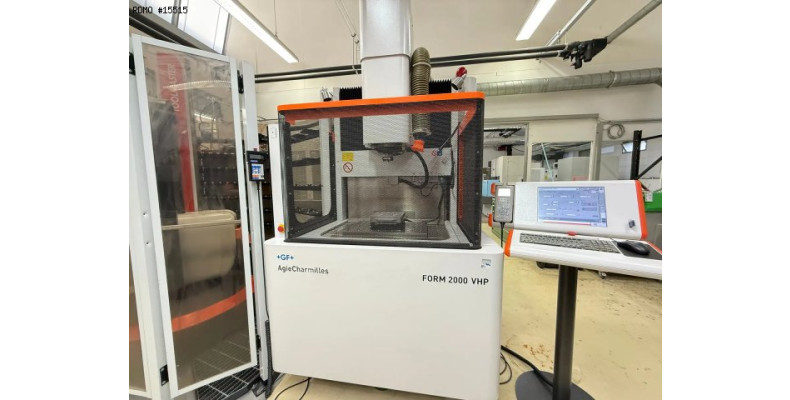

AGIE CHARMILLES FORM 2000 VHP 4 axis
PDF datasheet to download:
Brand: AGIE CHARMILLES
Model: FORM 2000 VHP
Year: 2015
Serial: 592.032.054.0414
Ask Price

Caracteristics & Equipment

Caracteristics

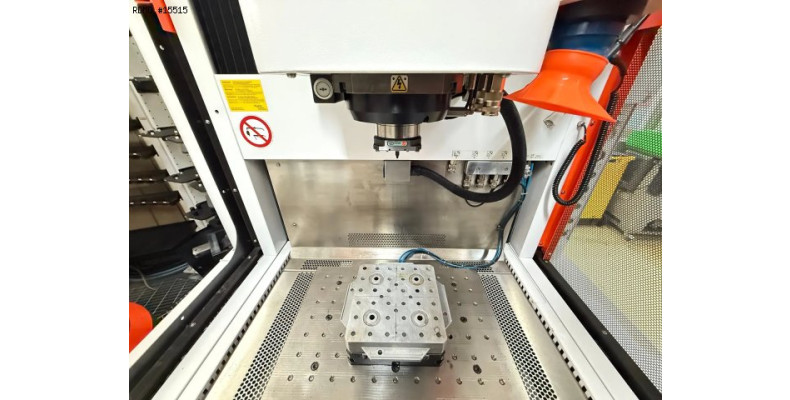

- Travels on X/Y/Z axes : 400 x 300 x 350 [mm]
- Rapid traverses rates (X/Y/Z) : 6 / 6 / 15 [m/min]
- Min./max. distance between table and chuck : 170 / 520 [mm]
- Max. part dimensions : 820 x 580 x 250 [mm]
- Max. part weight : 800 [kg]
- Max. electrode weight : 50 [kg]
- C axis : 0 - 100 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 9.1 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 4.700 x 2.750 [mm]
- Machine height : 2.680 [mm]
- Machine weight : 3.830 [kg]
Equipment

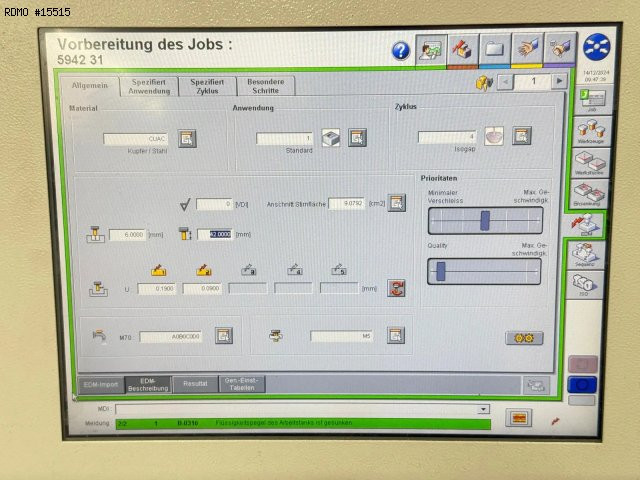

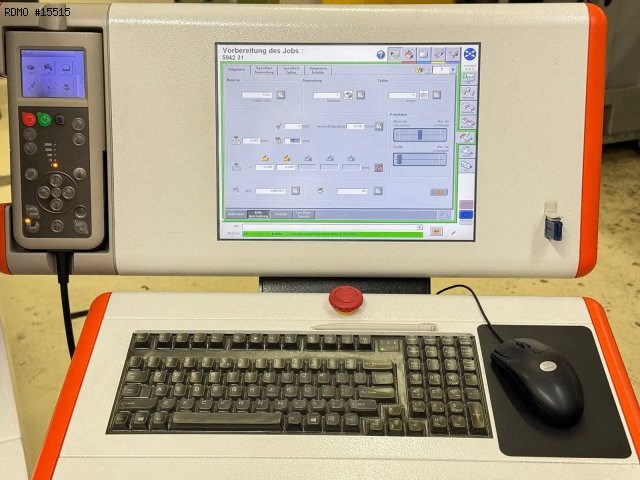

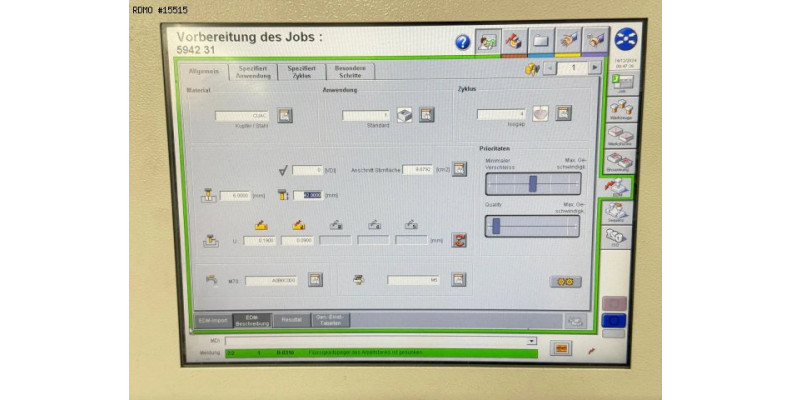

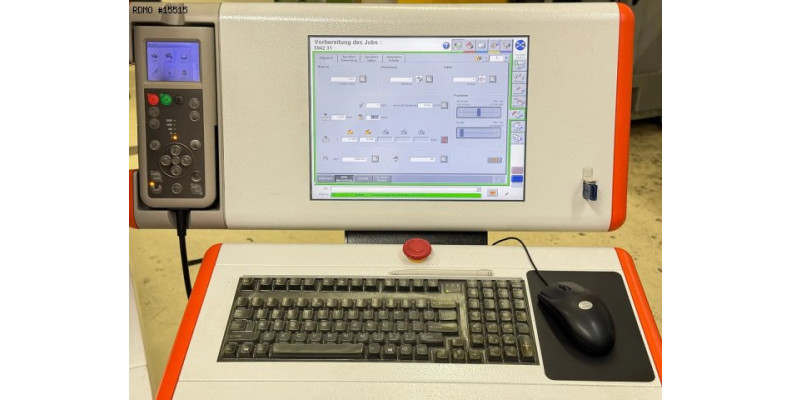

- CNC : AGIEVISION 5

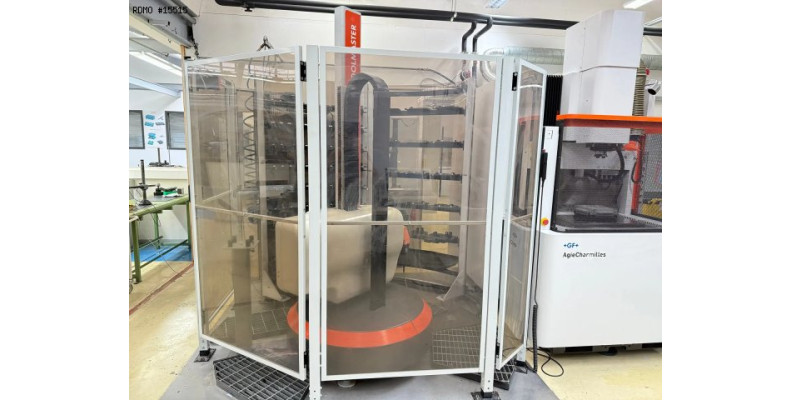

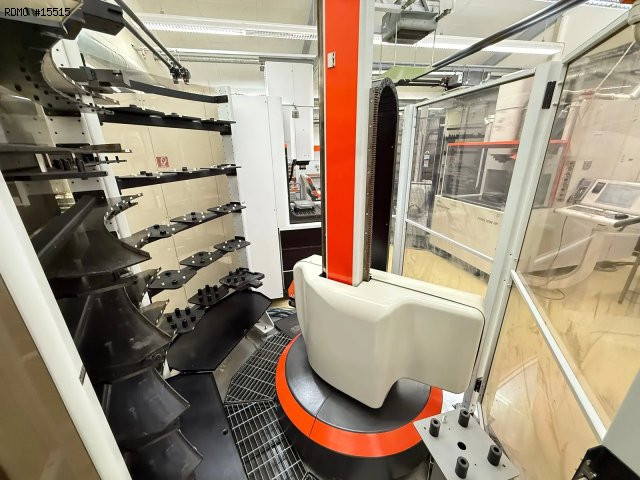

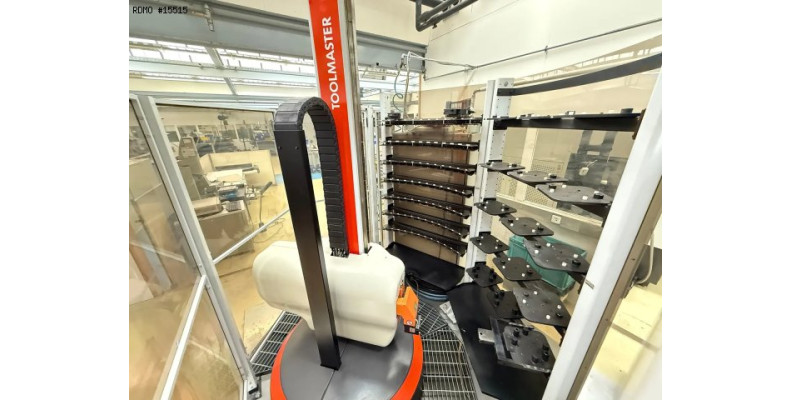

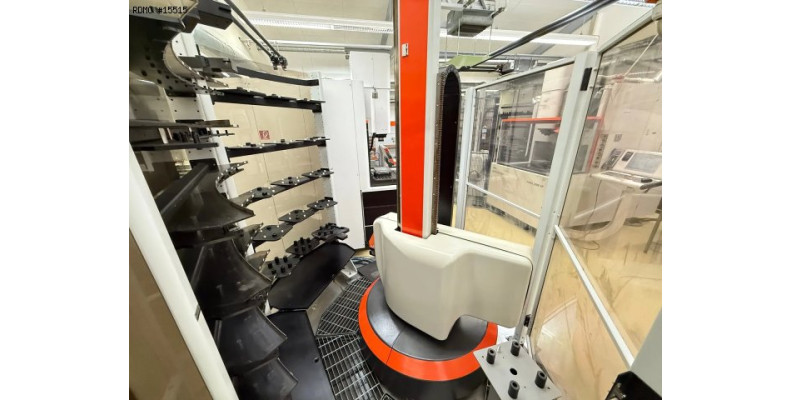

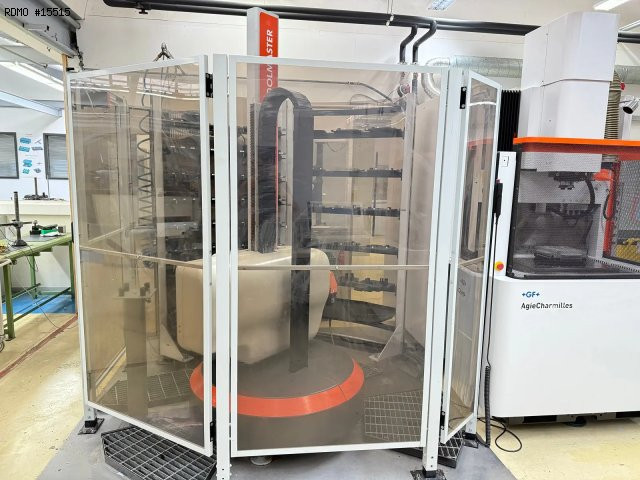

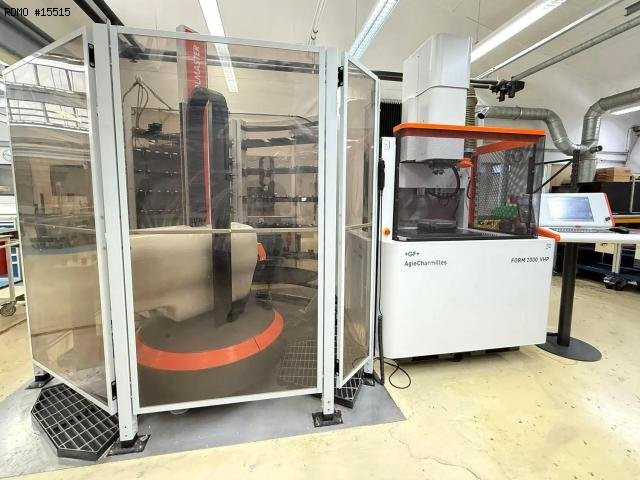

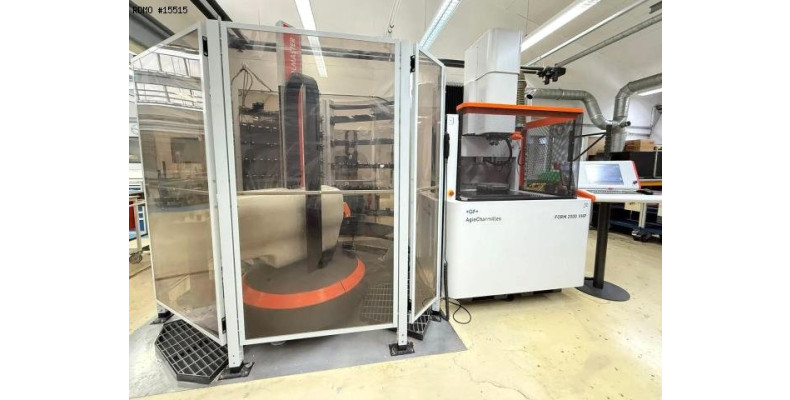

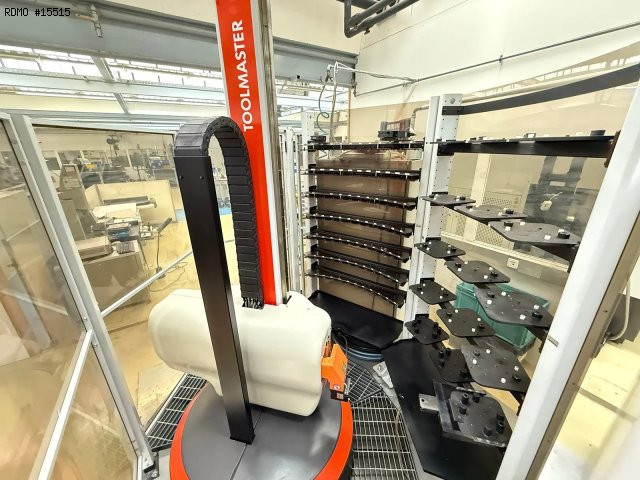

- Workpiece loading / unloading robot

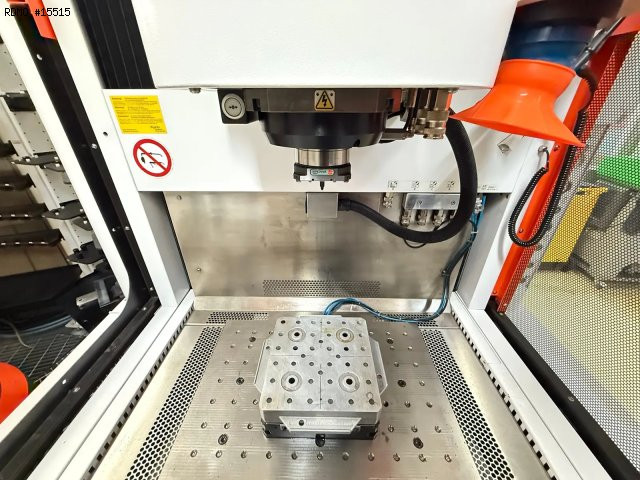

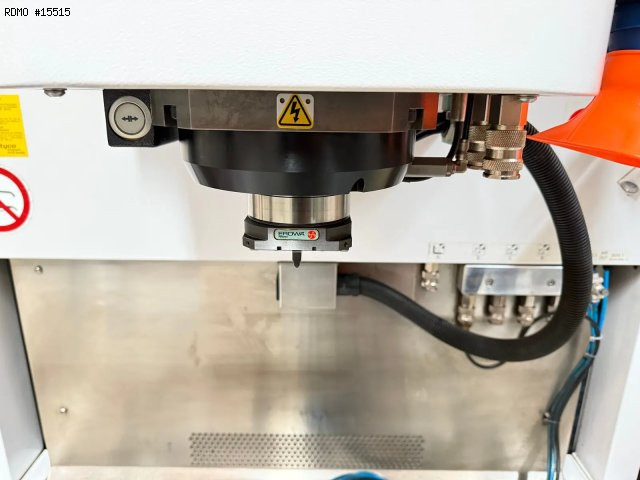

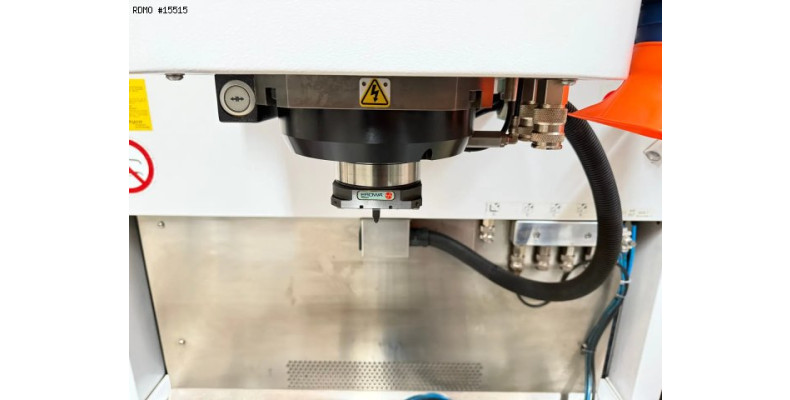

- Spindle nose : EROWA
- Dielectric capacity : 600 [l]

Datasheet

PDF datasheet to download:

Description
