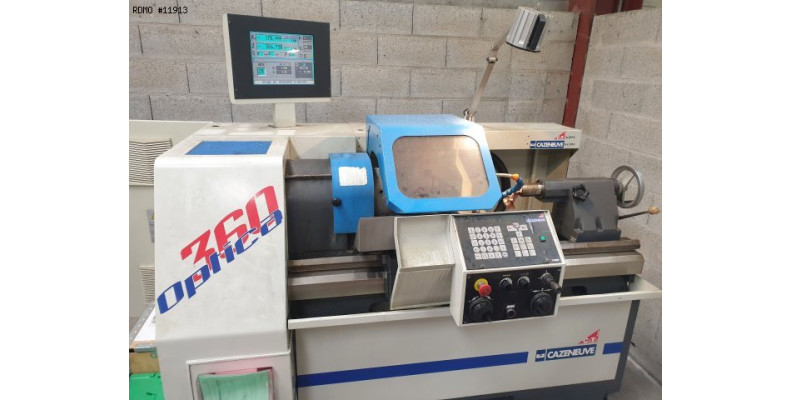

Cazeneuve OPTICA 360 2 axis
Brand: Cazeneuve
Model: OPTICA 360
Year: 2006
Serial: 5056

Caracteristics & Equipment

Caracteristics

- Centers height : 207 [mm]
- Max. diameter above bench : 430 [mm]
- Max. diameter above slide : 300 [mm]
- Distance between centers : 700 [mm]
- Max. turning length : 610 [mm]
- Strokes X x Z : 180 x 160 [mm]
- Spindle type : A1-6''
- Spindle power : 14 [kW]
- Rotation speed : 0 - 3000 [Rpm]
- Max. bar diameter : 54 [mm]

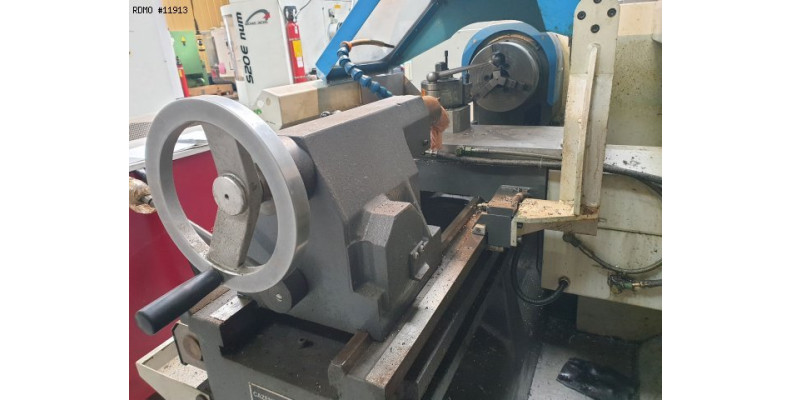

- Tail stock type : morse N°4
- Quill stroke : 140 [mm]
- Supply : 400V 50 Hz
- Dimensions : 1950 x 1225 x 1595 [mm]
- Weight : 2000 [kg]
Equipment

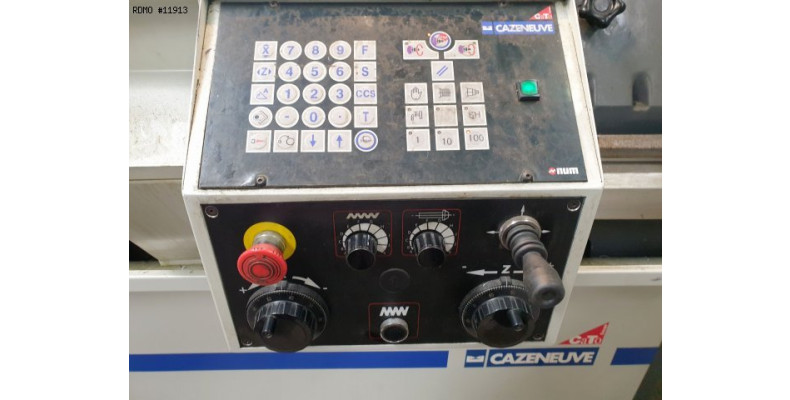

- CN Teach In
- Touchscreen on slide

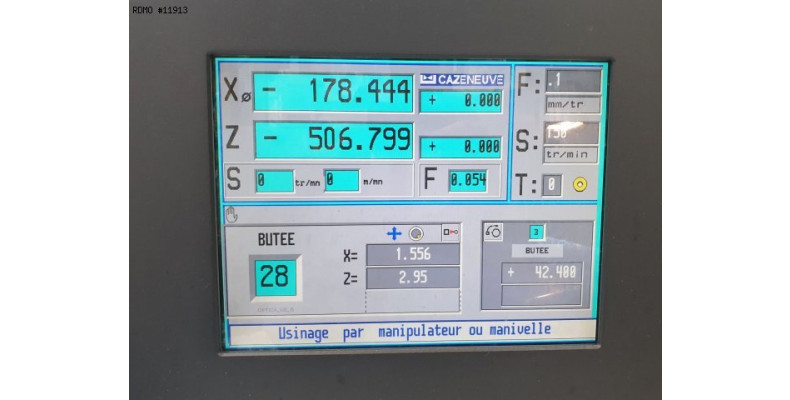

- LCD control screen

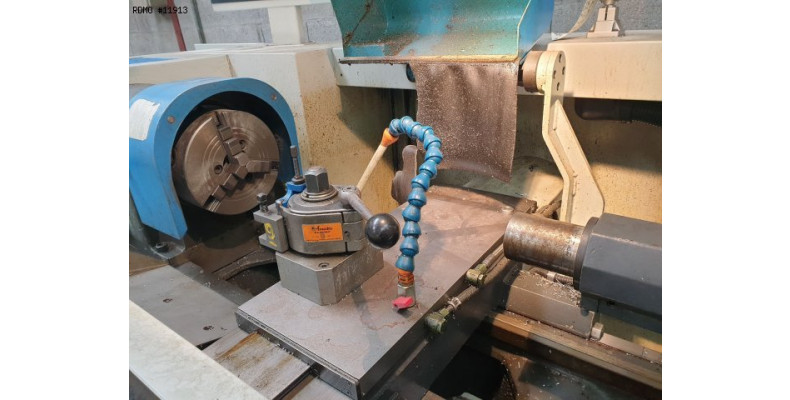

- 3 jaws chuck Ø200 mm
- Set of hardened jaws
- AMESTRA turret type B
- 7 quick change tool holders AMESTRA type B
- Cooling tank with pump with automatic control
- Lighting
- 4 feet
