Caracteristics & Equipment

Caracteristics
- grinding diameter : 5 – 200 [mm]
- max. grinding depth : 250 [mm]
- normal centers height : 180 [mm]
- clearance diameter in normal protection : 260 or 300
[mm]
- max. grinding parts length : 500 [mm]
- clearance in part holder headstock : 50 [mm]
- int. cone shaft nose : metric 70
- part holder headstock speeds : 125-250-400-500-800-1000
[rpm.]
- part holder headstock max. slope : 90 [°]
- min./max. stroke of the table : 3 / 600 [mm]
- table speed with progressive adjustment : 0-10 [m/min.]
- round number of grinding spindles : 3600-40000
[rpm]
- spindles diameter : 90 [mm]
- necessary power : 8-10 [ch]
- floor space : 3200 x 1630 [mm]
- weight : 2700 [kg]
Equipment
- 1 magnetic plate Ø200

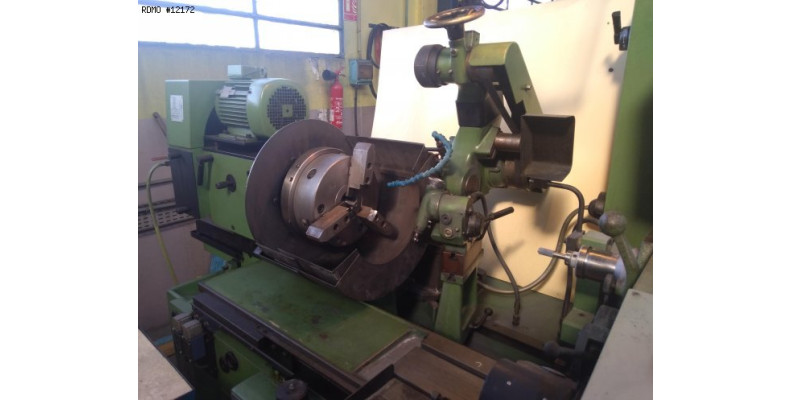

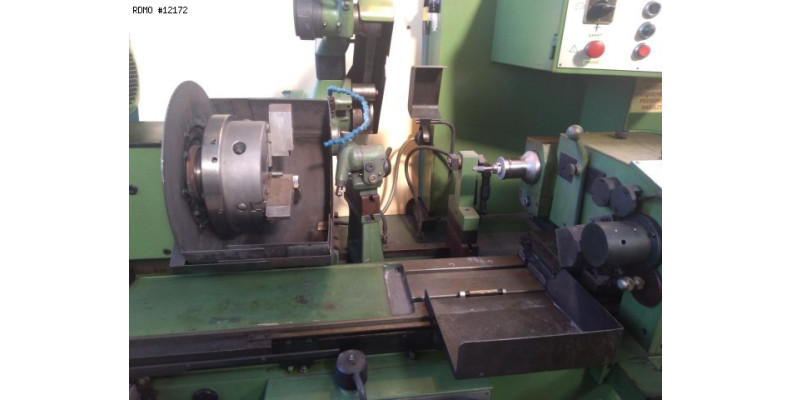

- 1 external chuck Ø290 (brand REISHAUER) with 5 jaws
sets.
- 1 spindle C90
- 1 diamond grinder
- 1 lubricating tank with paper filtration
PDF datasheet to download:

Description

Used Machine tools for sale

In order to view this video, first you have to authorize the use of web youtube cookies.

Configure
The machine has been added to the quote

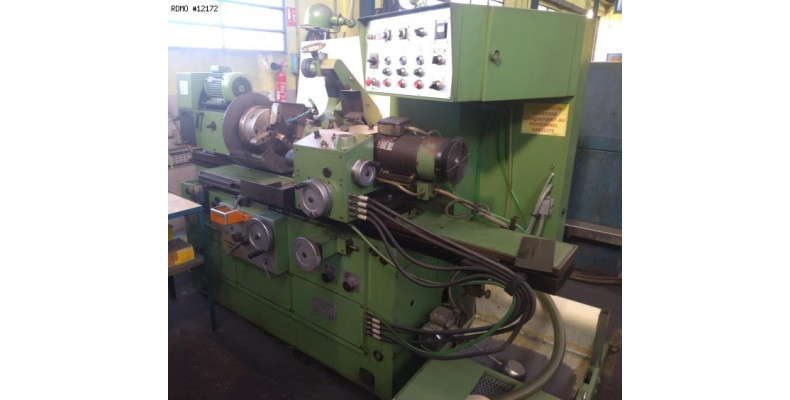

VOUMARD 5A
