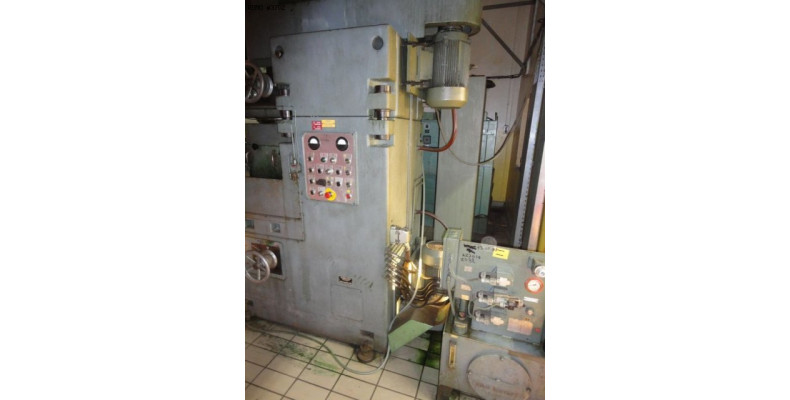

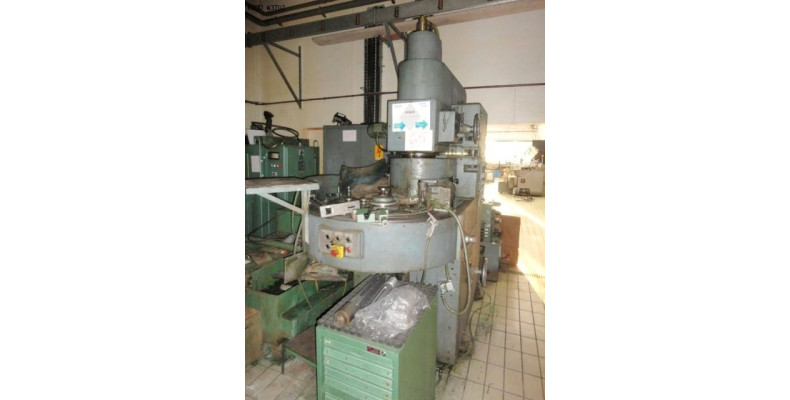

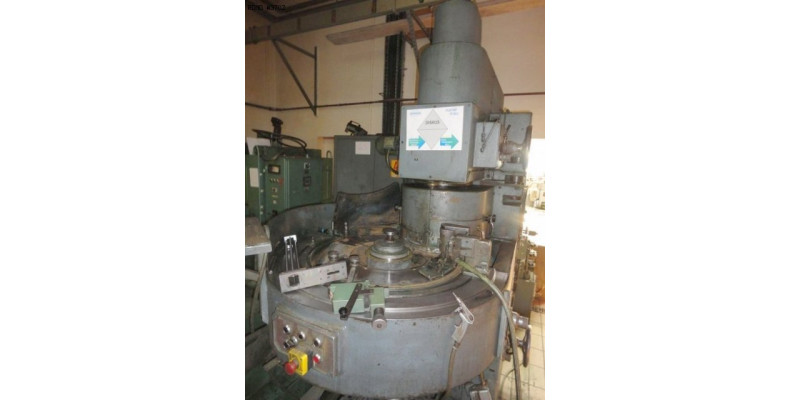

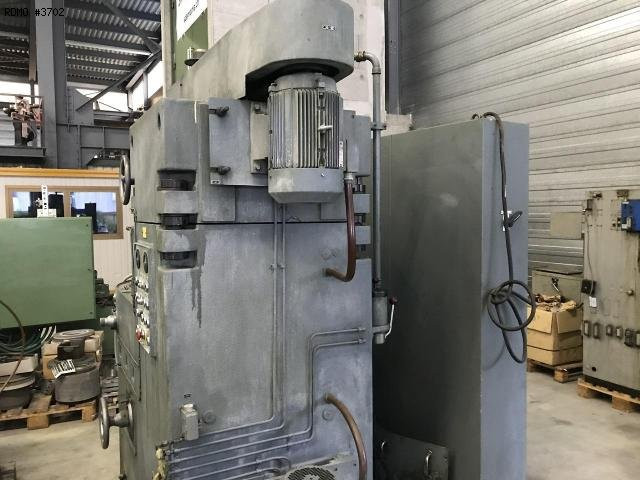

Diskus DDS 457R

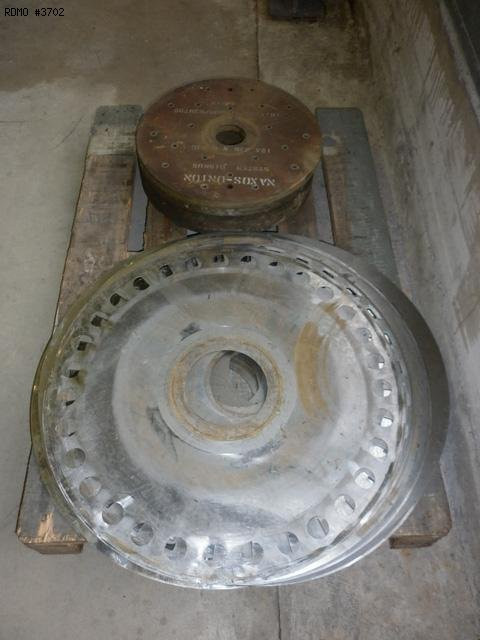

- grinding wheel dimensions : diam.457 x 75 x 76,2 [mm] - lower and upper spindle holder headstock diameter : 457 [mm] - machining capacity width : 10-60 [mm] - work height with a new grinding wheel : 95 [mm] - upper grinding wheel rotation speed : 251-1254 [Rpm] - lower grinding wheel rotation speed : 251-1254 [Rpm] - tangential speed upper grinding wheel : 6-30 [m/sec] - tangential speed lower grinding wheel : 6-30 [m/sec] - part feed speed : 21 to 215 [m/s] - tension / frequency : 380 V / 50 Hz - intensity : 70 [A] - motor power : 2 x 11 [kW] - power : 35 [kW] - machine weight : 4700 [kg] - floor space (LxDxH) : 3700 x 2000 x 2550 [mm]

- trueing device
