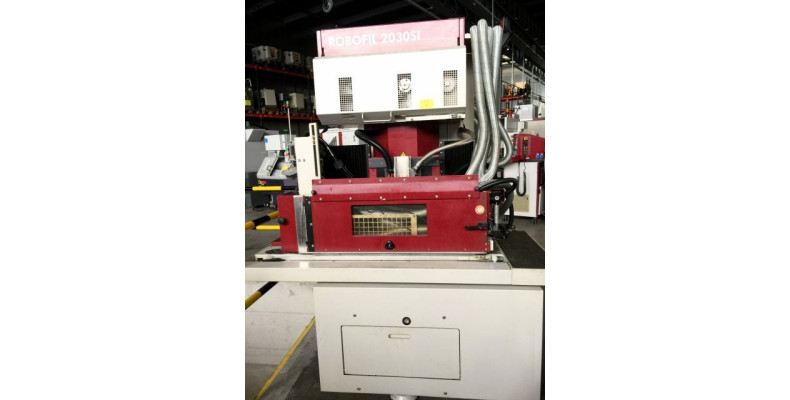

Charmilles ROBOFIL 2030 SI 6 axis
Brand: Charmilles
Model: ROBOFIL 2030 SI
Year: 2004
Serial: 124364

Caracteristics & Equipment

Caracteristics

- max. workpiece dimensions : 1000 x 490 x 260 [mm]
- max. workpiece weight : 500 [kg]
- strokes X x Y x Z : 320 x 220 x 114 [mm]
- strokes U and V axis : ± 48 [mm]
- tapper max. : +/- 30 [°]
- tank size : 1.150 x 576 x 366 [mm]
- wire Ø : 0,05 - 0,33 [mm]
- weight : approx. 3.500 [kg]
Equipment

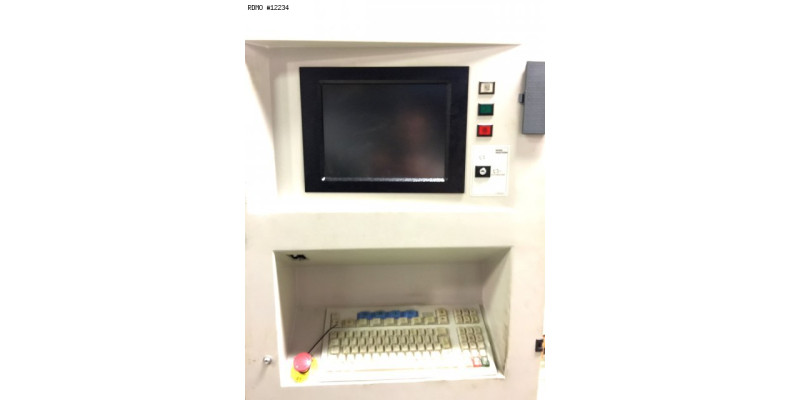

- CNC Charmilles Pc-based
- Submerged
- Filtration MAN 190/16, down to : 0,005 [mm]

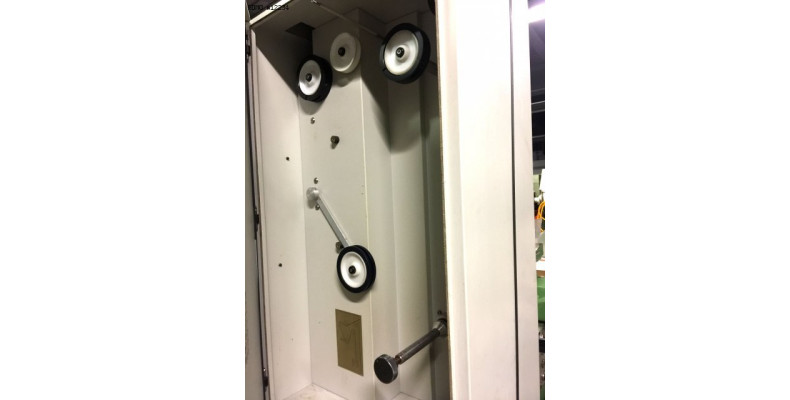

- Automatic wire threading
- Option big bobin
- Used wire cutting unit

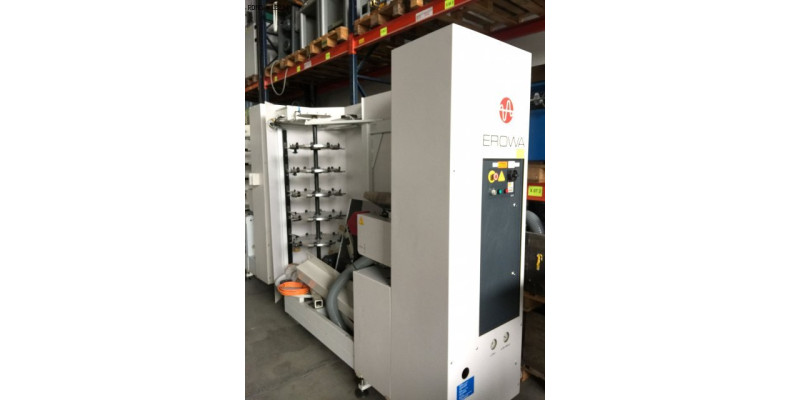

- EROWA 5-50 S robot with stacker : 50 [pos]

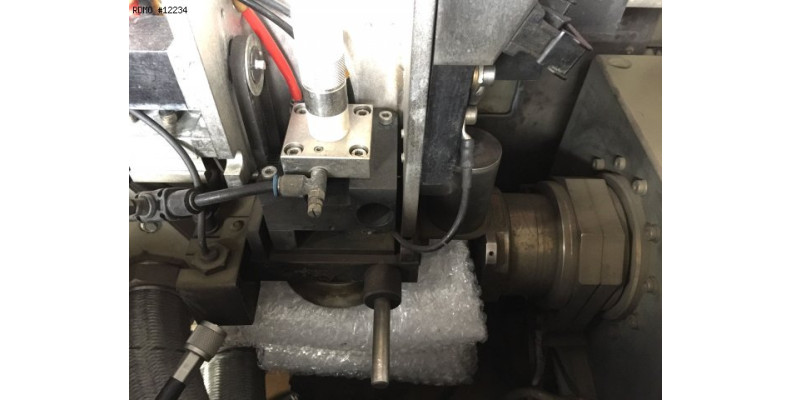

- CNC LEHMANN dividing unit : horizontal, swivelling vertical for loading
- EROWA ITS chuck
PDF datasheet to download:

Description

horizontal dividing head as 6th axis Used Machine tools for sale
