Charmilles ROBOFIL 2020 SI 6 axis

Edm machines Wire erosion
12233
PDF datasheet to download:
Brand: Charmilles
Model: ROBOFIL 2020 SI
Year: 1998
Serial: 123684
12233

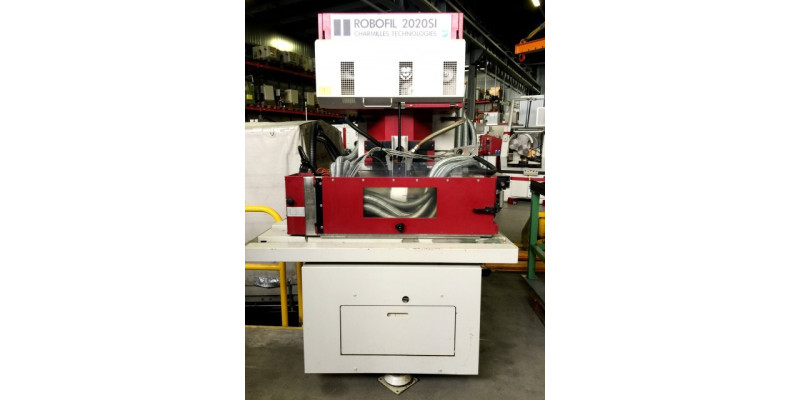

Charmilles ROBOFIL 2020 SI 6 axis
PDF datasheet to download:
Brand: Charmilles
Model: ROBOFIL 2020 SI
Year: 1998
Serial: 123684
Ask Price

Caracteristics & Equipment

Caracteristics

- max. workpiece dimensions : 900 x 505 x 270 [mm]
- max. workpiece weight : 500 [kg]
- strokes X x Y x Z : 320 x 220 x 116 [mm]
- strokes U and V axis : ± 50 [mm]
- tapper max. : +/- 30 [°]
- tank size : 1.150 x 576 x 366 [mm]
- dielectric capacity : 1.000 [l]
- wire Ø : 0,05 - 0,30 [mm]
- weight : approx. 3.500 [kg]
Equipment

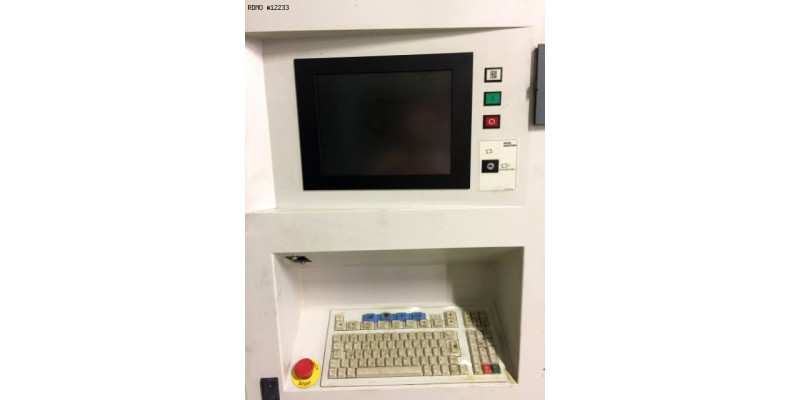

- CNC Charmilles Pc-based
- Submerged
- Filtration MANN H15 190/16, down to : 0,005 [mm]

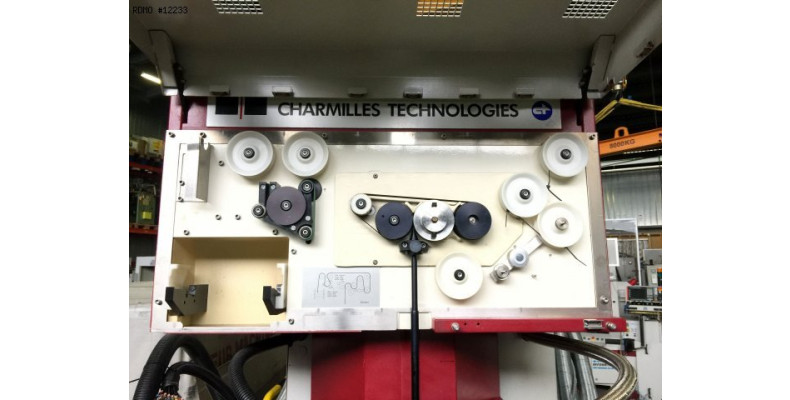

- Automatic wire threading

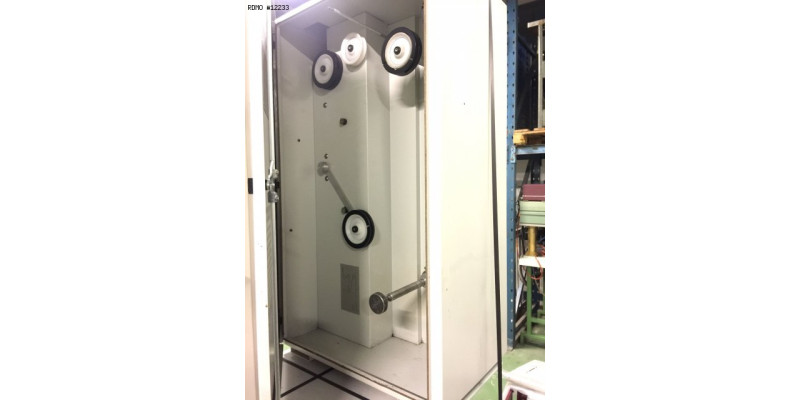

- Option big bobin

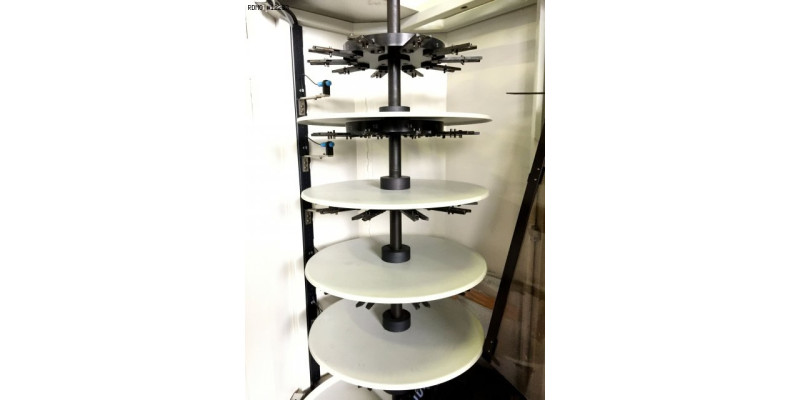

- EROWA 5-50 SR 90° robot with stacker : 50 [pos]
- CNC LEHMANN dividing unit : horizontal, swivelling vertical for loading
- EROWA ITS chuck

Datasheet

PDF datasheet to download:

Description

horizontal dividing head as 6th axis Used Machine tools for sale
