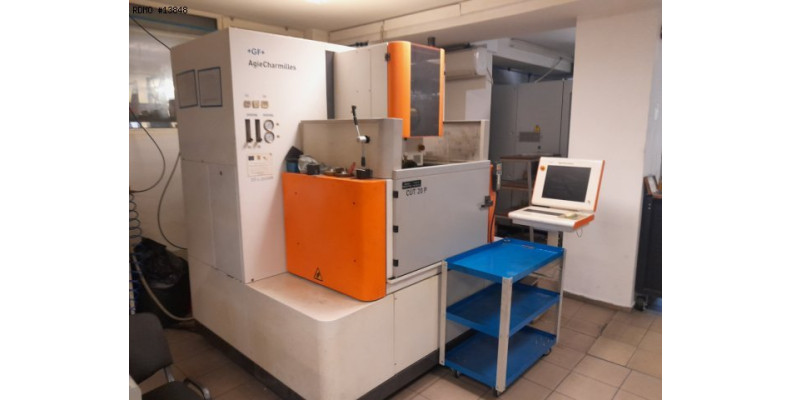

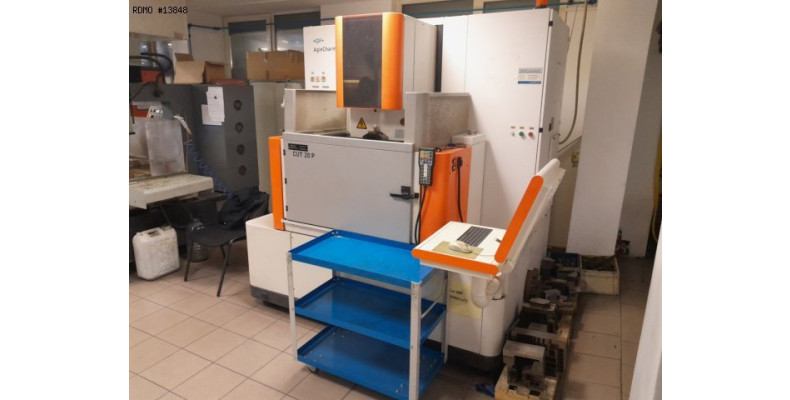

Agie CUT 20P

13848
Brand: Agie
Model: CUT 20P
Year: 2010
Serial: 069-007
13848
Agie CUT 20P
Brand: Agie
Model: CUT 20P
Year: 2010
Serial: 069-007

Caracteristics & Equipment

Caracteristics
STROKES - X, Y, Z axes: 350 x 250 x 250 [mm] - U, V axes: +/- 90 [mm] - Max. taper: +/- 25/80 [°/mm] PART - Max. workpiece dimensions: 900 x 680 x 250 [mm] - Max. workpiece weight: 400 [kg] - Finish quality: 0,125 [μm] WIRE GUIDE - Wire diameter: 0.15 to 0.30 [mm] - Spool weight: 5 - 8 [kg] - Speed: 30 - 270 [mm/s] WORK AREA - Table size: 700 x 480 [mm] - Reservoir : Automatic - Dielectric capacity: 600 [L] POWER SUPPLY - Power supply voltage : 380 [V] - Installed power: 11 [kVA] WEIGHT & DIMENSIONS - Floor dimensions: 2500 x 2500 [mm] - Machine height : 2200 [mm] - Machine weight: 2890 [kg] MACHINE HOURS - Number of working hours : 12041 [h]
Equipment
- CN Pentium III CPU
