Tornos DECO 2000/20 10 axis

- Number of axes : 10 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 25,4 [mm] - Max. machining length : 200 [mm] - Spindle speeds : 10.000 [rpm] - C axis indexing precision : 0,1 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 10.000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0,1 [°] - Number of guide bush holders : 2 GUIDE BUSH HOLDER 1 - Number of positions : 5 GUIDE BUSH HOLDER 2 - Number of positions : 5 - Number of motorized positions : 4 - Live tools speed : 8.000 [rpm] END ATTACHMENT - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 6.000 [rpm] SECONDARY OPERATION - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 8.000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 13 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.270 x 1.650 [mm] - Machine height : 2.200 [mm] - Machine weight : 3.500 [kg] MACHINE HOURS - Number of working hours : 40.236 [h]

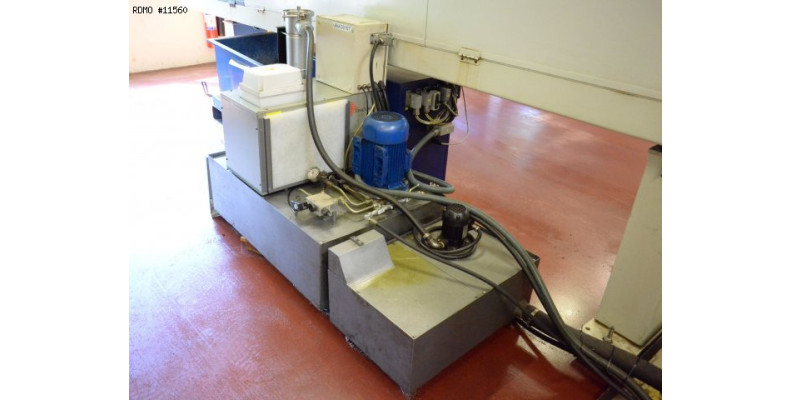

- CNC : Fanuc PNC DECO - Rotating tool motor on : S2, S3, S5 vertical + horizontal - Rotating guide bush - Parts catcher - Coolant tank * with cooling unit for coolant : TERMOGAMMA * with high-pressure pump - Number of rotary tool holders : 4 - Number of turning tool holders : 7 - Number of fixed drillers : 4
