Schmidt 23-50-1K

Presses Hydraulic press
12896
PDF datasheet to download:
Brand: Schmidt
Model: 23-50-1K
Year: 2013
Serial: 0292
12896
Schmidt 23-50-1K
PDF datasheet to download:
Brand: Schmidt
Model: 23-50-1K
Year: 2013
Serial: 0292
Ask Price

Caracteristics & Equipment

Caracteristics

- pressure : 4.2 [kN]

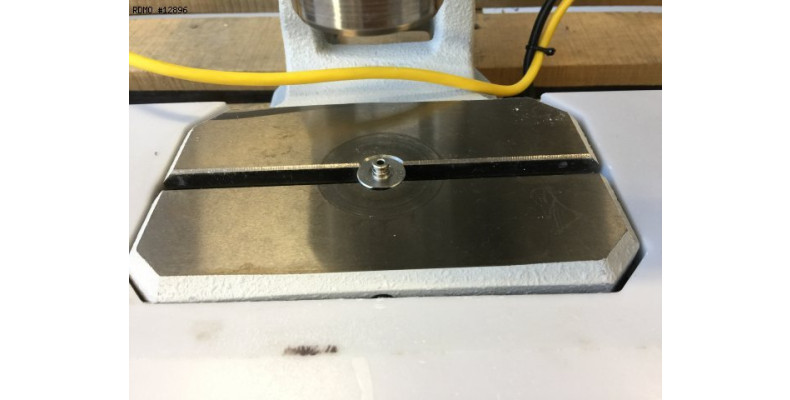

- table surface : 170 x 100 [mm]
- pressing piston stroke : 50 [mm]
- work height : 0 - 190 [mm]
- pressing piston diameter : 40 [mm]
- tools dimensions : 150 x 110 [mm]
- max. tool weight : 10 [kg]
- work pressure : 3 - 6 [bars]
- supply voltage : 1 x 230 [VAC]
- dimensions : 600 x 800 x 700 [mm]
- weight : 35 [kg]
Equipment

- must work with a computer because the following functions are managed through computer : bearing strength, descent speed, number of cycles, etc...

Datasheet

PDF datasheet to download:

Description
