National 62 2F 2M

- Number of dies and punches : 2
- Total stamping force : 300 [kN]
- Number of knocks : 350 [l/min]
- Shearing diameter : 6.5
- Min/max shearing length : 12/55
- Min/max die ejection travel : 9/35
- Punch ejection travel : 10
- Back flow diameter : 15
- Fixed shear diameter : 35
- Mobile shear insert diameter : 12
- Die diameter : 48
- Punch diameter : 35

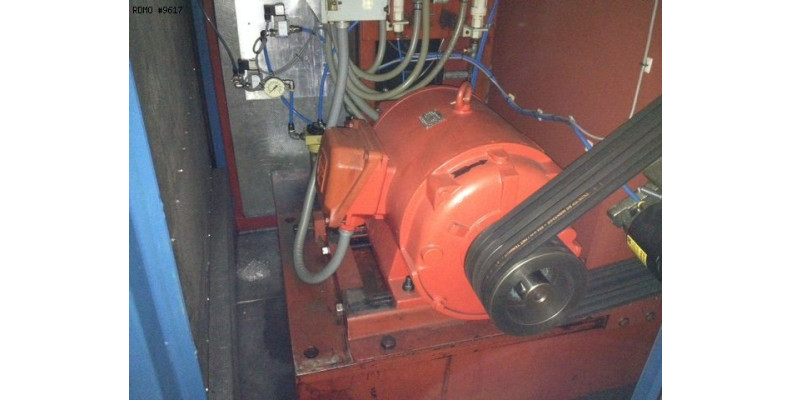

- Motor power : 11 [kW]
- Thread axis above ground : 940
- Thread straightener with 5 tensioners
- Dimensions : 1.52 x 3.31 x 2.19 [m]
- Weight : 4535 [kg]
