Caracteristics

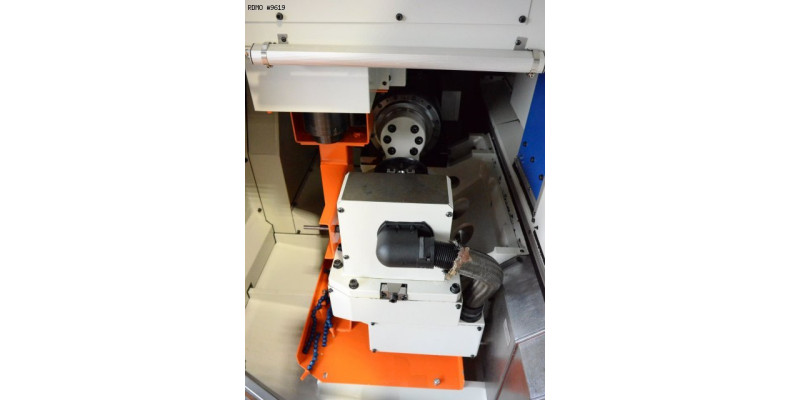

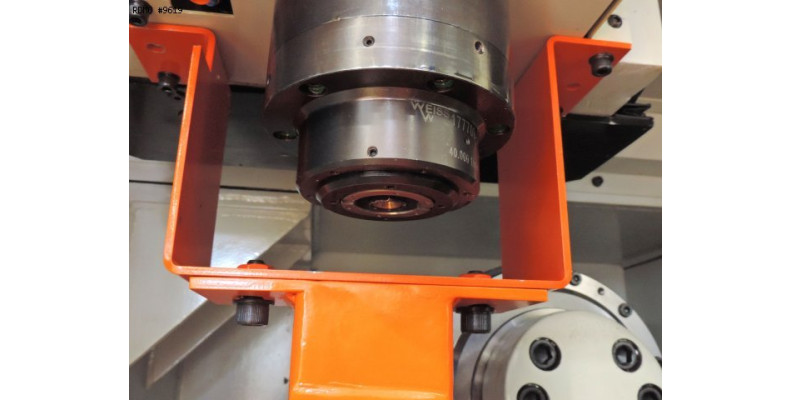

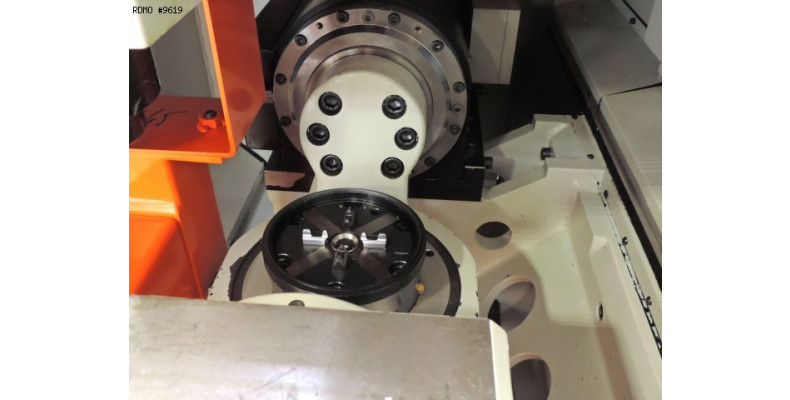

- Number of axes : 5 MILLING SPINDLE - Tool holder type : HSK40 - Spindle power : 32,5 [kW] - Spindle speeds : 40.000 [rpm] - Number of spindle hours : 1.211 [h] LINEAR AXES - Travels on X/Y/Z axes : 420 / 320 / 320 [mm] - Cutting feed rates (X/Y/Z) : 60.000 [mm/min] A ROTARY AXIS - Travel : 360 [°] - Indexing precision : 0,001 [°] - Cutting feed rate : 200 [rpm] B ROTARY AXIS - Travel : 100 [°] (+/-) - Indexing precision : 0,001 [°] - Cutting feed rate : 200 [rpm] TOOL CHANGER - Auto. Tool Changer type : Loading arm - Tool magazine capacity : 60 - Tool exchange time : 5 [sec] TABLE - Table dimensions : Ø 250 [mm] - Maximum weight upon table : 20 [kg] - Distance table / spindle nose (min./max.) : 40 / 360 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 35 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2.050 x 2.555 [mm] - Machine height : 2.520 [mm] - Machine weight : 5.000 [kg] MACHINE HOURS - Number of hours under power : 4873 [h]
Equipment

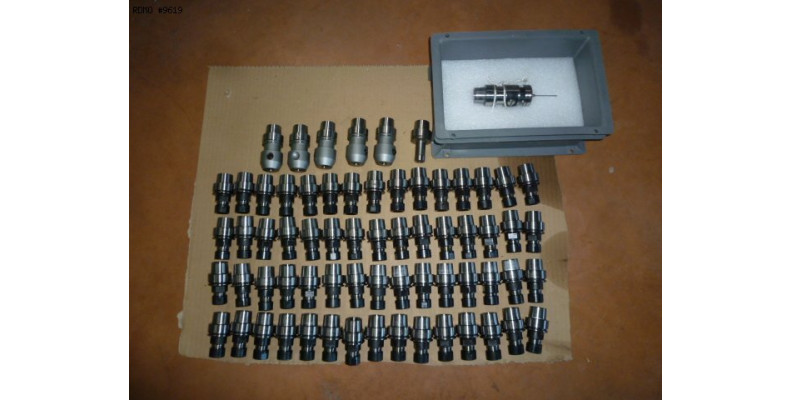

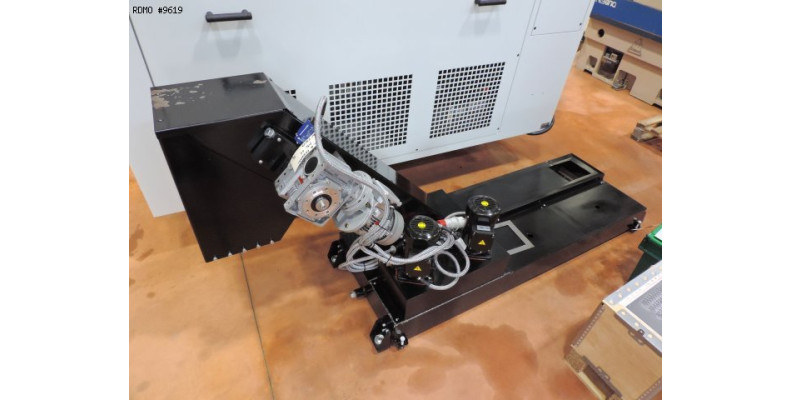

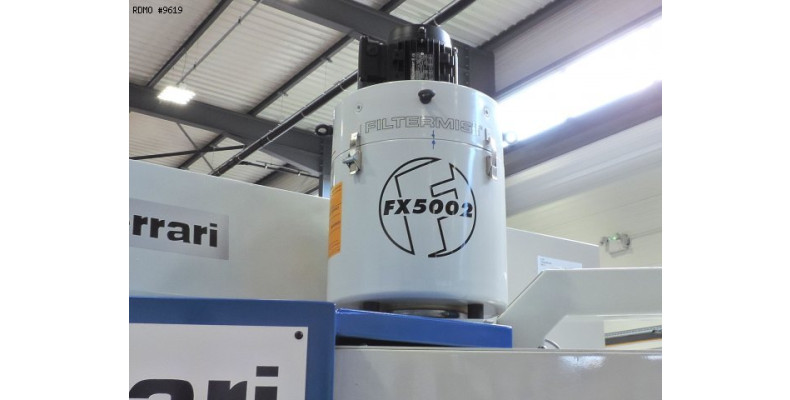

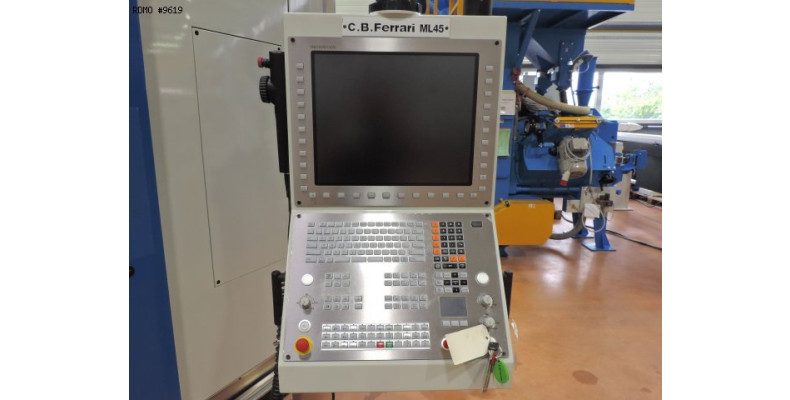

- CNC : Heidenhain iTNC530 - Electronic deported handwheel - Direct measuring scales : Heidenhain - 3 colors status lamp - COOLANT TANK * With washing gun - Chips conveyor - Oil mist extractor : FILTERMIST FX5002 - Spindle cooling unit - Electrical cabinet air conditioning - Tool probe : Renishaw - Workpiece probe : Renishaw - Tool-holders : 60 - Tool preparation bench
