Nikon V-20A

Measuring Profile projector
12100
PDF datasheet to download:
Brand: Nikon
Model: V-20A
Year:
Serial: 42284
12100
Nikon V-20A
PDF datasheet to download:
Brand: Nikon
Model: V-20A
Year:
Serial: 42284
Ask Price

Caracteristics & Equipment

Caracteristics

- vertical optical axis A

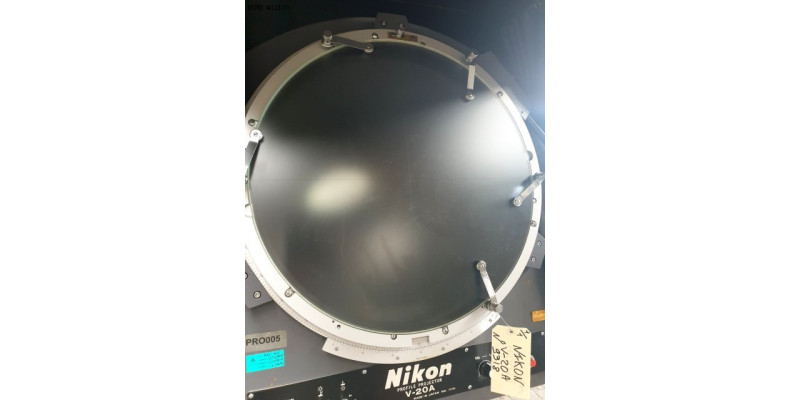

- screen Ø : 500 [mm], with inclined angular measure revolution 13.6°

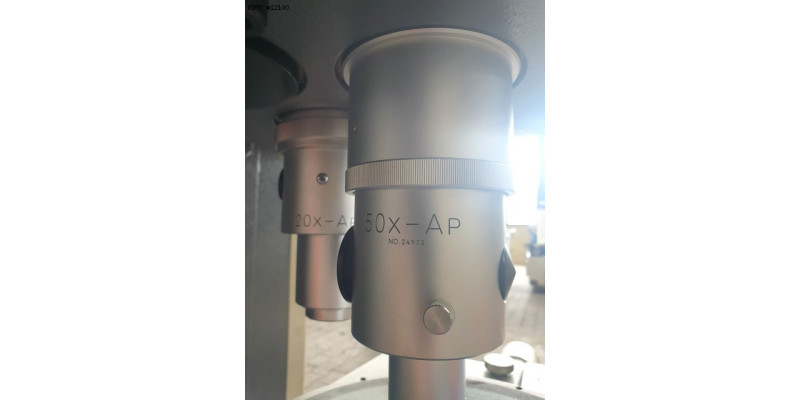

- objectives : 20x, 50x

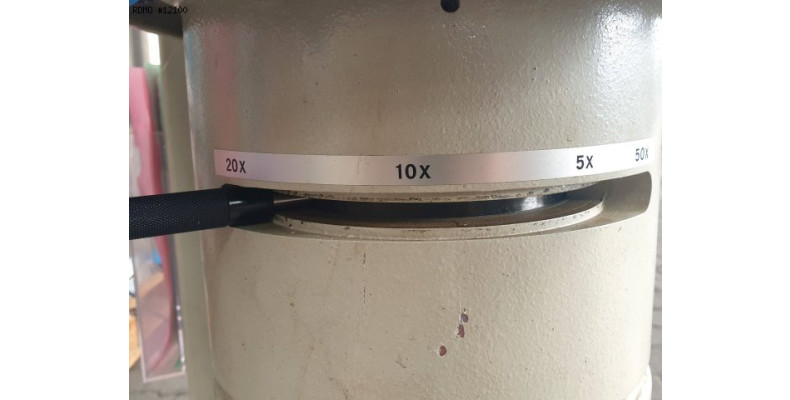

- rotary turret for objectives

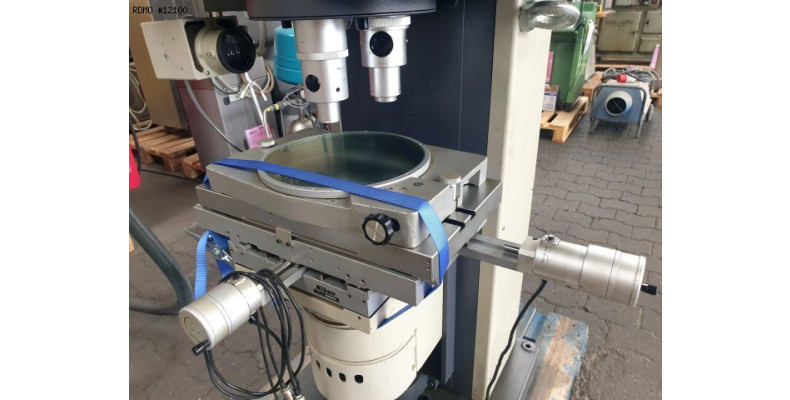

- platinum,
* 7V
* surface 460 x 260 [mm]
* glass plate 290 x 180 [mm]
* travels in X/Y 175 x 75 [mm]
* max. specimen weight 20 [kg]
- magnification precision : diascopic down to ±0.1%, episcopic down to ±0.15%
- dimensions : 1430 x 760 x 2020 [mm]
- weight : 300 [kg]

Datasheet

PDF datasheet to download:

Description
