Caracteristics
- Useful space (width x depth x height): 350 x 350 x 350 [mm]
- Load weight : 100 [kg]
- Power : 43 [kW]
- Ambient conditions :
* temperature : 5 – 40°C
* max. hygrometry : 95%, without condensation
- Protection class (oven+control installation) :
IP20
- Catalytic post-combustion through KNV 75
* concentration of harmful products in contaminated gas : Cmax
Ges = [3g/min]
* volumetric flow : Vmax = 15[Nm3/h]
* Tmax temperature : 580[°C]
- Voltage : 400 [V]/50 [Hz]
- Total oven weight : approx. 900 [kg]
- Total transformer weight : approx. 270 [kg]
Equipment

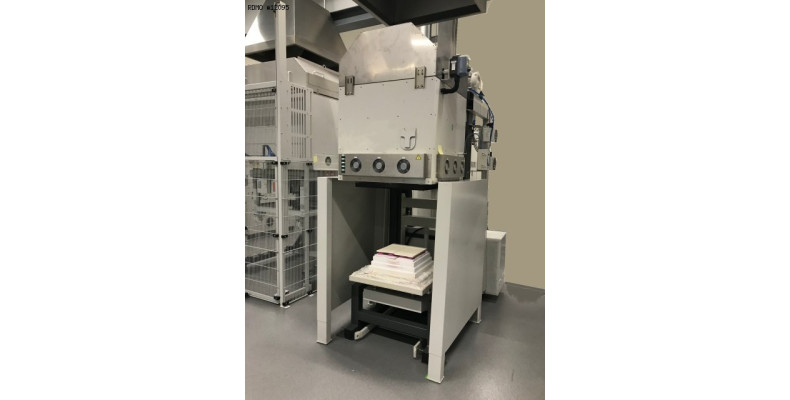

• Lifting table controlled by pushbutton switch
• Fresh air intake from the top through the roof
• Direct hold for contaminated gas
• Catalytic post-combustion through KNV 75
• Automatic air flap on the oven
• Inox chimney
• Fresh air intake flow surveillance
• Contaminated gas flow surveillance between the oven and the catalyst
• Prepared for a removable table system
• Thermocouples for the regulation and documentation

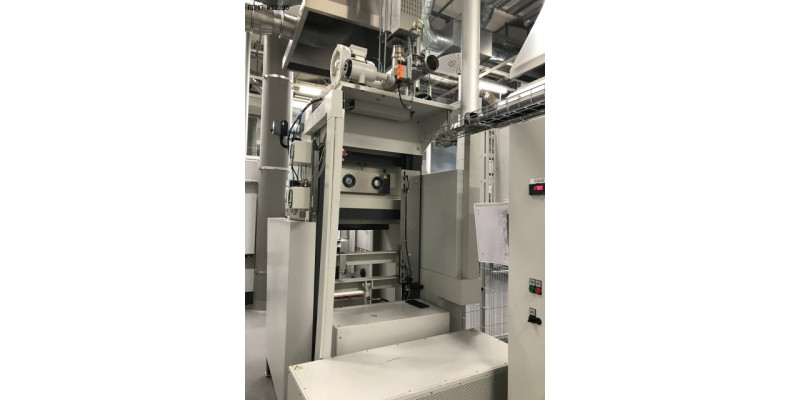

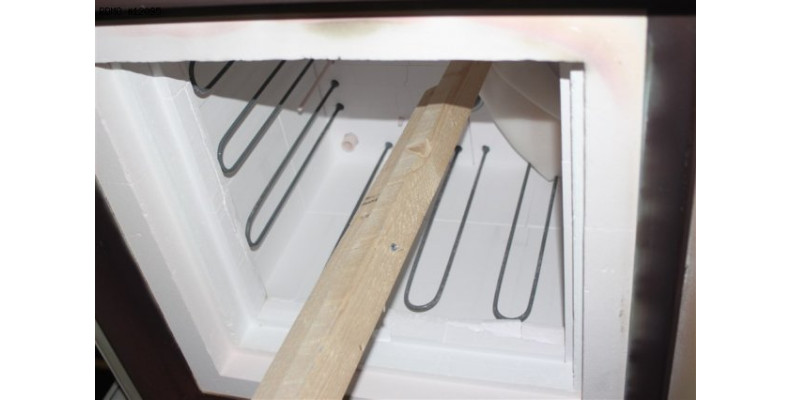

Sintering oven with electric heating 'lift / bottom', max. operating temperature 1750°C. The heating system in the oven chamber consists of one adjustment area. The heating is done through 4 sides with heating elements.
