Sodick AQ 325 L 5 axis

Edm machines Wire erosion
10858
PDF datasheet to download:
Brand: Sodick
Model: AQ 325 L
Year: 2003
Serial: 1624
10858

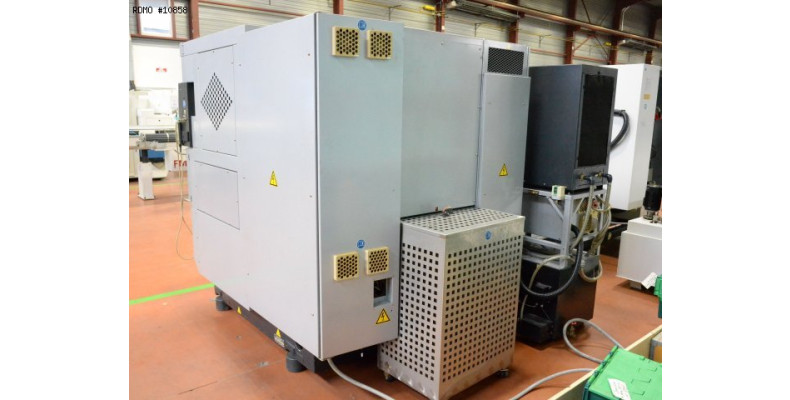

Sodick AQ 325 L 5 axis
PDF datasheet to download:
Brand: Sodick
Model: AQ 325 L
Year: 2003
Serial: 1624
Ask Price

Caracteristics & Equipment

Caracteristics

- Max. part dimensions : 600 x 400 x 220 [mm]
- Max. part weight : 450 [kg]
- Max. table dimensions : 600 x 400 [mm]
- Strokes X, Y, Z : 350 x 250 x 220 [mm]
- Stroke U, V : 80 x 80 [mm]
- Thread diameter : 0,15 to 0,30 [mm]
- Max. clearance : +/- 20 [°]
- Three-phased supply tension : 400 [V]
- Dimensions : 2250 x 2200 x H. 2080 [mm]
- Weight : 3.300 [kg]
Equipment

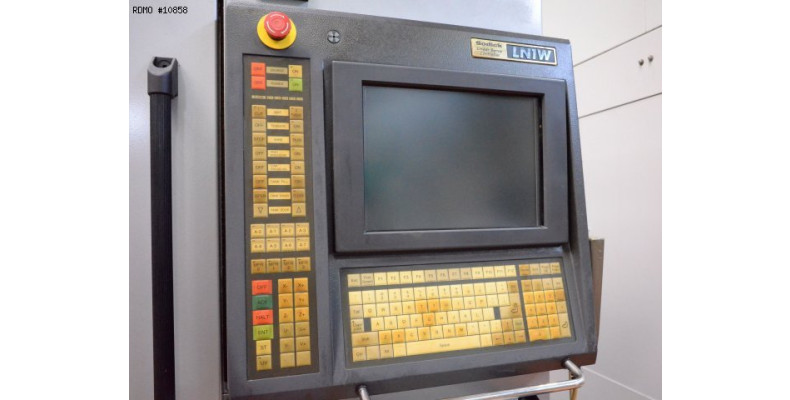

- CNC SODICK LN1W
- Touch screen

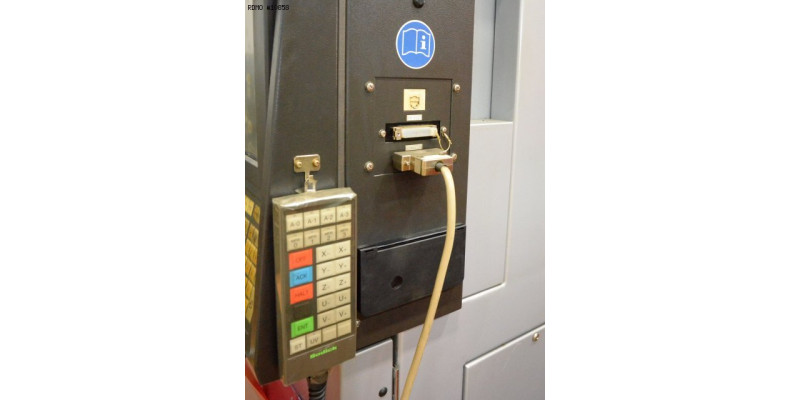

- Electronic deported crank handle

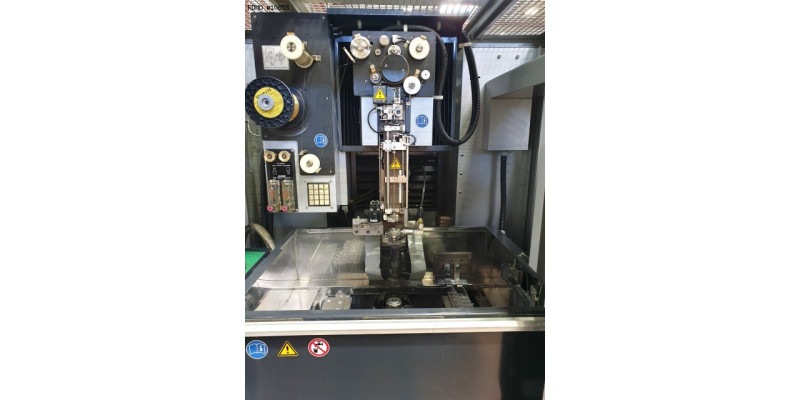

- Automatic threading and re-threading

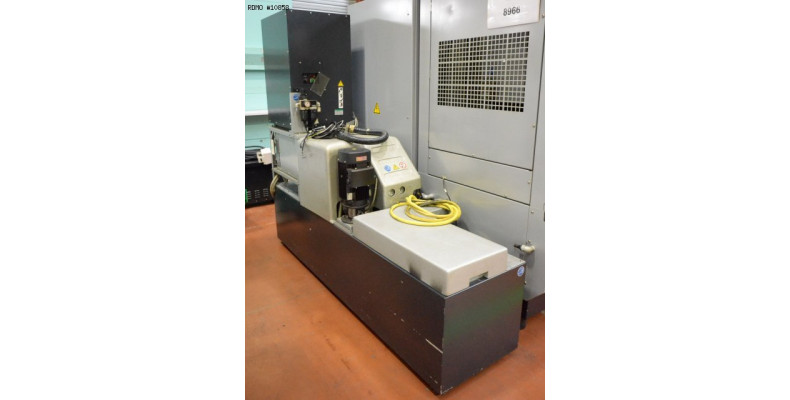

- Filtering unit 530 Liter with 2 paper cartridges
- De-ionization : 10 [l]

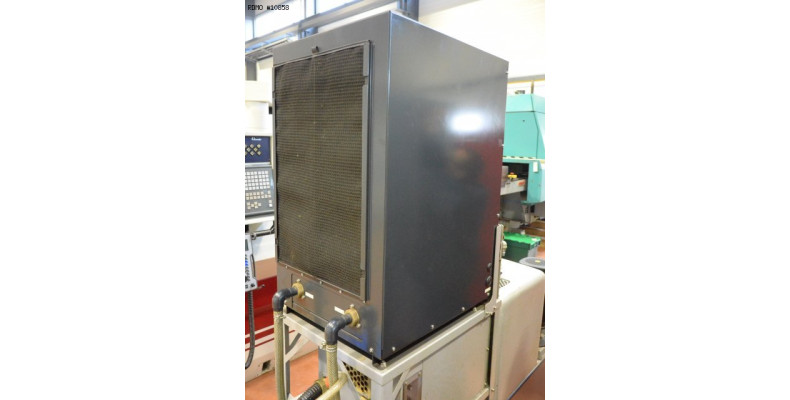

- Cooling unit

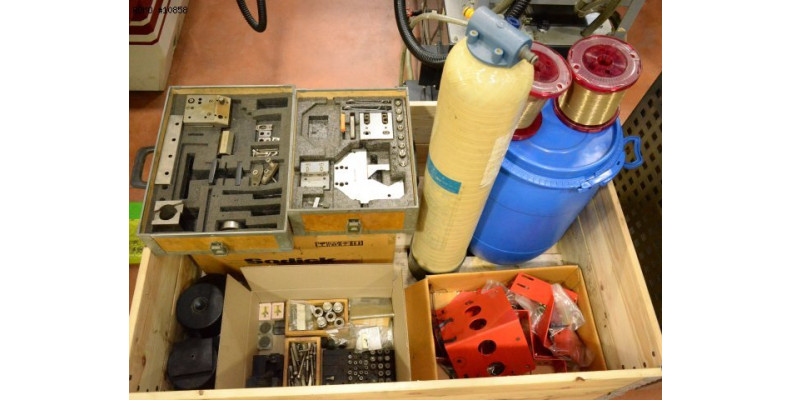

- Restraining frame 3R
- Set of flanges 3R
- Machine equipped for wire diameter : 0,25 [mm]

Datasheet

PDF datasheet to download:

Description

Thread cutting by immersion Used Machine tools for sale
